Chapter 03 - Deep Dive

Why This Deserves Its Own Deck

This is your first encounter with:

• Multi-dimensional equivalence class testing
• Combinatorial complexity (600 potential tests!)
• Strategic test reduction using domain knowledge
• Visual understanding of geometric test cases

Goal: By the end, you'll understand how to systematically design tests for complex functions!

Important: This builds on concepts from the main "Equivalence Classes" slide deck. If you haven't seen that yet, go back and review it first!

Full details: See the lecture notes section on find_intersection()

The Function We're Testing

From your Road Profile Viewer project:

def find_intersection(
    x_road: np.ndarray,      # Road profile x-coordinates
    y_road: np.ndarray,      # Road profile y-coordinates
    angle_degrees: float,    # Ray direction (-90° to 90°)
    camera_x: float = 0,     # Camera x position
    camera_y: float = 1.5    # Camera y position
) -> tuple[float, float] | None:
    """
    Find where a ray from camera intersects the road profile.
    Returns (x, y) of intersection, or None if no intersection.
    """
    # ... 70 lines of geometric logic ...

The Challenge: Five Dimensions of Complexity

We identified 5 independent dimensions:

1. Array Structure (5 classes): Empty, single point, two points, three points, many points
2. Angle (5 classes): Downward, horizontal, upward, vertical down, vertical up
3. Camera Position (6 classes): Before road, on road, after road, above, at level, below
4. Outcome (4 classes): No intersection, first segment, middle segment, last segment
5. Road Shape (3 classes): Flat, sloped, curved

Math: 5 × 5 × 6 × 4 × 3 = 1800 potential combinations!

Our Strategy: 1800 → 22 Tests

How we reduced the test count:

1. Cover each dimension with 2-4 representatives
2. Use domain knowledge to eliminate impossible/redundant combinations
3. Focus on distinct behaviors rather than all parameter combinations
4. Add critical edge cases that don't fit neat categories

Result: 22 strategic tests that cover the essential equivalence classes!

Let's see each test visually...

Reading the Visualizations

Legend for all diagrams:

• Blue line with dots = Road profile
• Red circle = Camera position
• Red dashed line = Ray from camera (defined by angle)
• Green circle = Intersection point (if found)
• Green dotted line = Distance from camera to intersection

Note: All intersections are computed geometrically, not approximated!

Category 1: Structural Tests

Dimension: How many points define the road?

Why this matters:

• Empty arrays → error handling
• Single point → no line segment (invalid)
• Two points → minimum valid road (1 segment)
• Many points → typical case

Tests 1-4 cover this dimension...

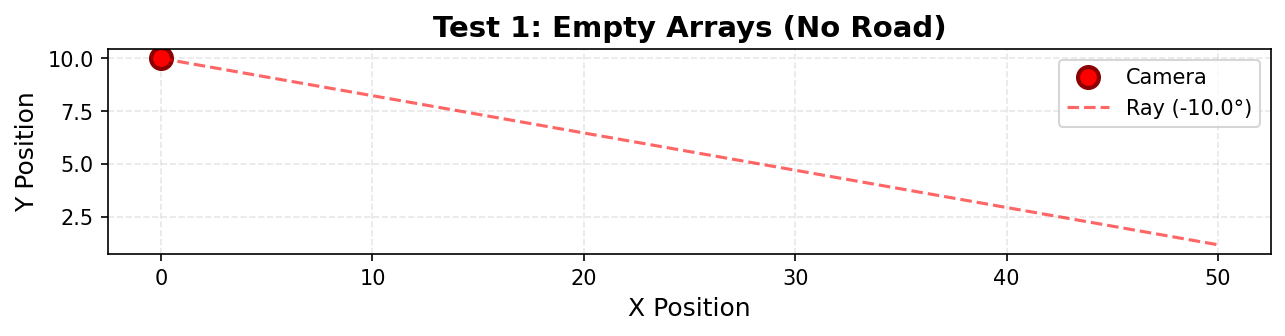

Test 1: Empty Arrays

Input: x_road = [], y_road = []
Expected: None (no road to intersect)
What it tests: Error handling for invalid input structure

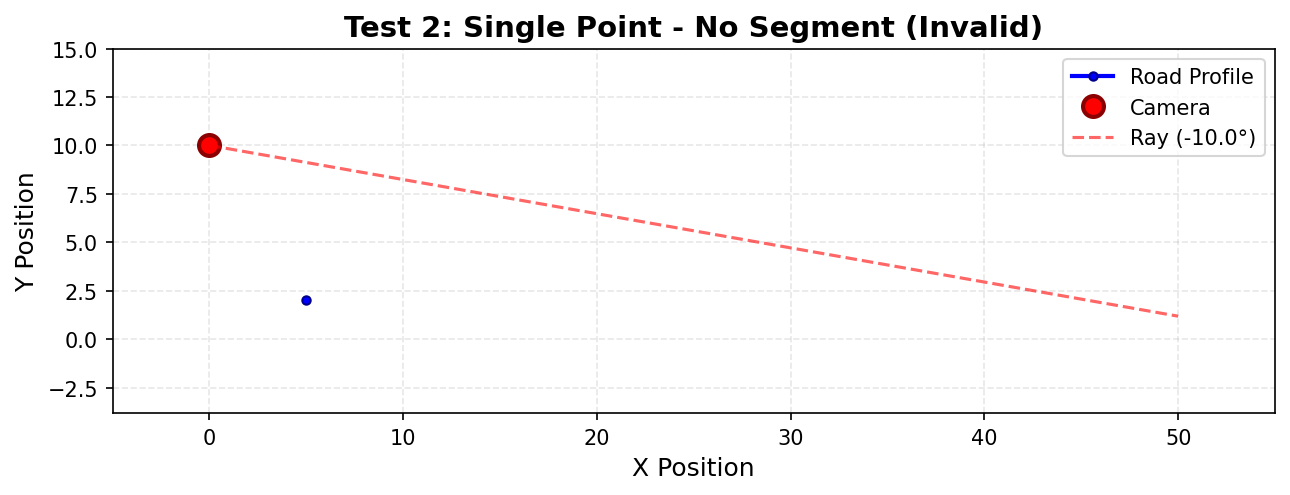

Test 2: Single Point

Input: x_road = [5.0], y_road = [2.0]
Expected: None (a point doesn't define a line segment)
What it tests: Minimum structural validation (need at least 2 points)

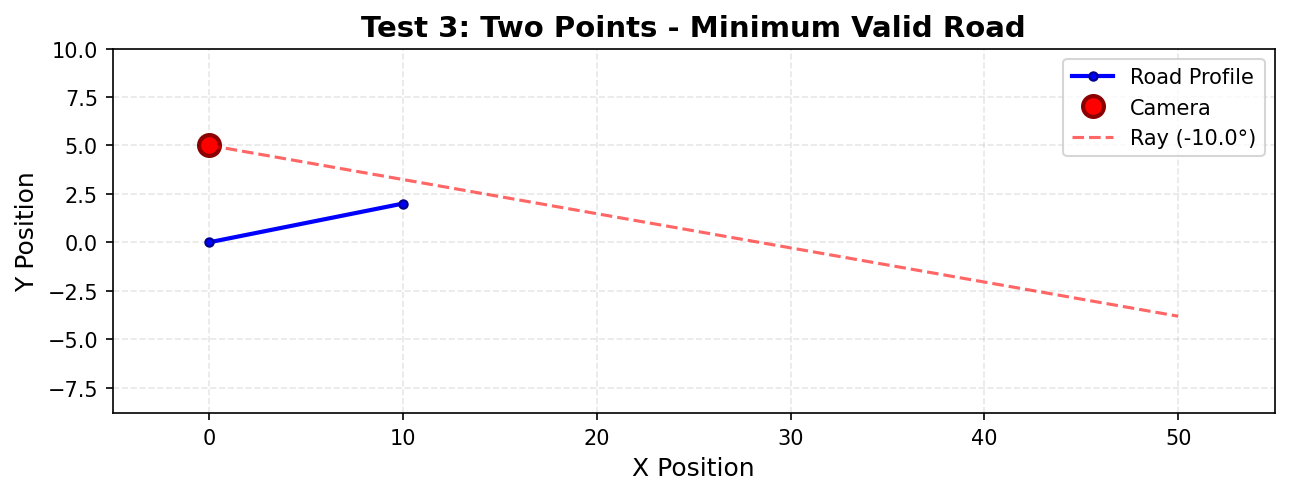

Test 3: Two Points - Minimum Valid Road

Input: x_road = [0, 10], y_road = [0, 2], angle = -10°
Expected: None (ray misses the short road)
What it tests: Minimum valid structure (1 segment), ray geometry

Test 4: Many Points (50 Points)

Input: 50 points creating a long sloped road
Expected: Intersection found at (x≈13.9, y≈1.4)
What it tests: Complex road with many segments, typical use case

Category 2: Angle Equivalence Classes

Dimension: Direction of the ray

Why this matters:

• Different angles exercise different trigonometry
• Vertical rays (±90°) have special handling (no slope)
• Horizontal rays (0°) are edge cases
• Direction affects which segments can be hit

Tests 5-9 cover this dimension...

Test 5: Downward Angle (-10°)

Input: angle = -10° (looking down), camera above road
Expected: Intersection found at (x≈33.1, y≈4.1)
What it tests: Typical downward ray, positive slope math

Test 6: Horizontal Ray (0°)

Input: angle = 0° (horizontal), camera at road level
Expected: Intersection at (x=0, y=2)
What it tests: Zero slope case, tangent to flat road

Test 7: Upward Angle (45°)

Input: angle = 45° (looking up), camera at road level
Expected: Intersection at (x=1, y=1)
What it tests: Positive angle, negative slope math

Test 8: Vertical Downward Ray (-90°)

Input: angle = -90° (straight down), camera above road
Expected: None (vertical ray, no intersection detected)
What it tests: Special case - undefined slope, vertical ray handling

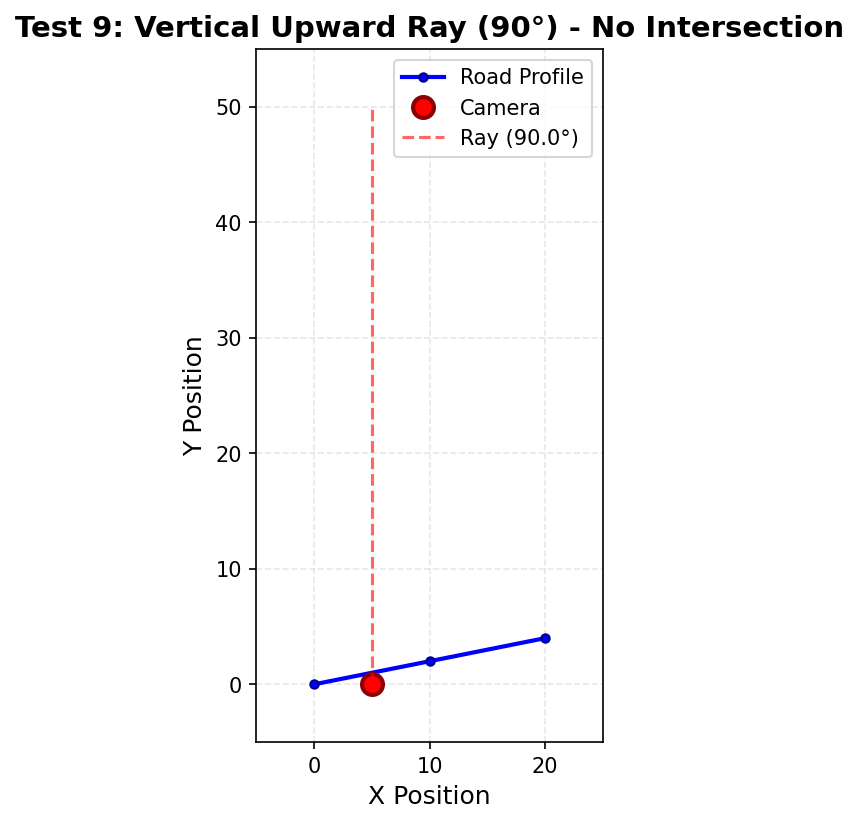

Test 9: Vertical Upward Ray (90°)

Input: angle = 90° (straight up), camera at ground
Expected: None (vertical ray, no intersection)
What it tests: Another vertical edge case, symmetry with -90°

Category 3: Position Equivalence Classes

Dimension: Where is the camera relative to the road?

Why this matters:

• Position affects which segments are "in front" of camera
• Edge positions test boundary logic
• Height affects intersection angles
• Tests camera_x and camera_y parameters

Tests 10-15 cover this dimension...

Test 10: Camera Before Road Start

Input: camera_x = 0 (before road starts at x=10)
Expected: Intersection at (x≈41.5, y≈3.8)
What it tests: Camera sees full road ahead, hits middle segment

Test 11: Camera On Road (x=15)

Input: camera_x = 15 (between road points)
Expected: Intersection at (x≈41.8, y≈4.2)
What it tests: Camera positioned within road bounds

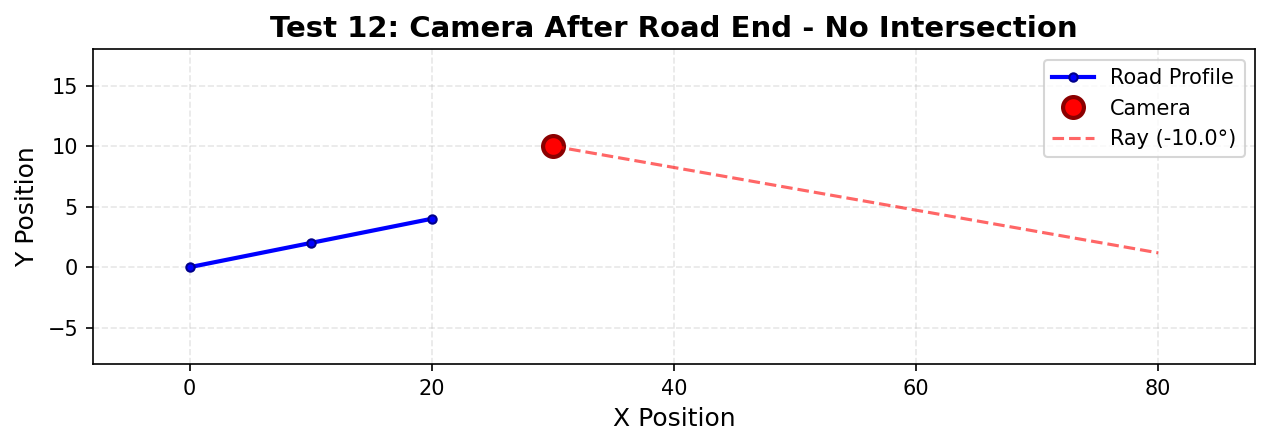

Test 12: Camera After Road End

Input: camera_x = 30 (after road ends at x=20)
Expected: None (ray looks forward, road is behind)
What it tests: Camera past all segments, no forward intersection

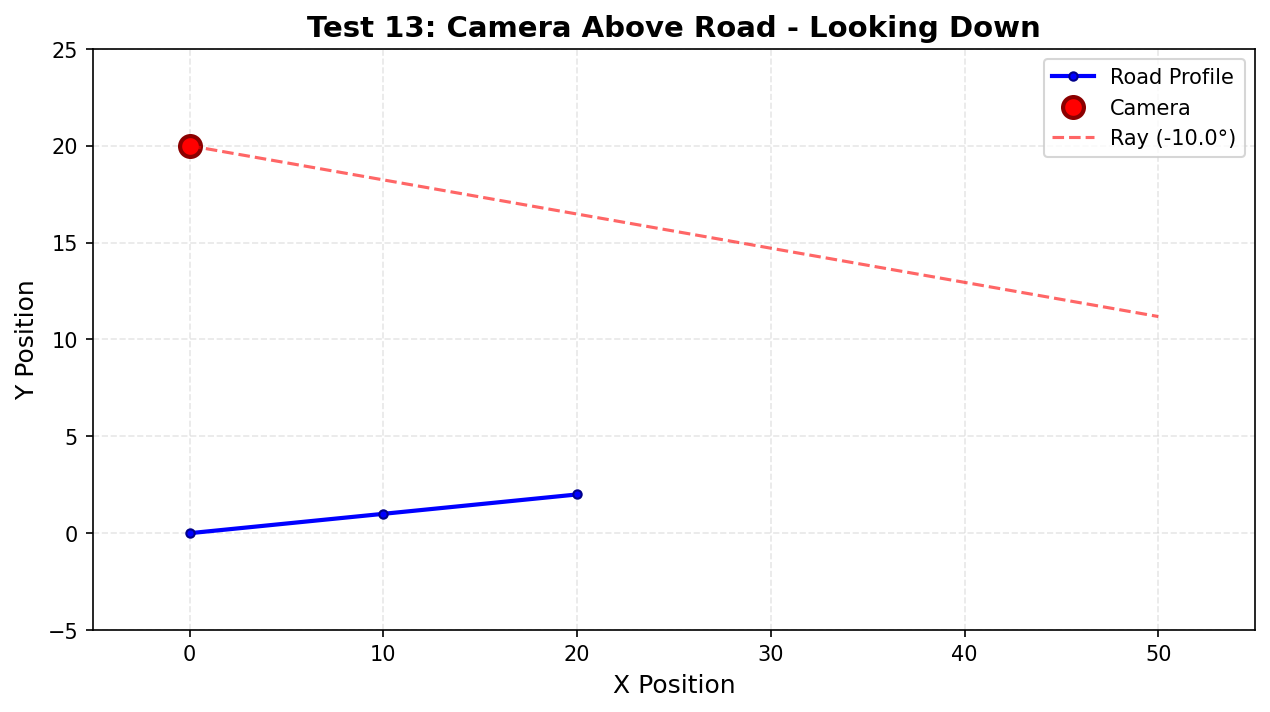

Test 13: Camera Above Road - Looking Down

Input: camera_y = 20 (high above road), angle = -10°
Expected: None (ray misses low road)
What it tests: Vertical position affects reachability

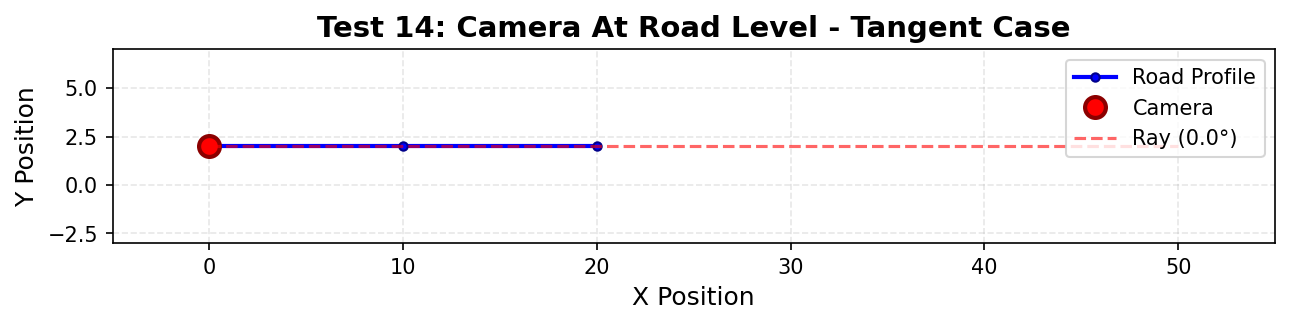

Test 14: Camera At Road Level - Tangent

Input: camera_y = 2.0 (same height as flat road), angle = 0°
Expected: Intersection at (x=0, y=2) - ray touches road immediately
What it tests: Tangent case, ray along surface

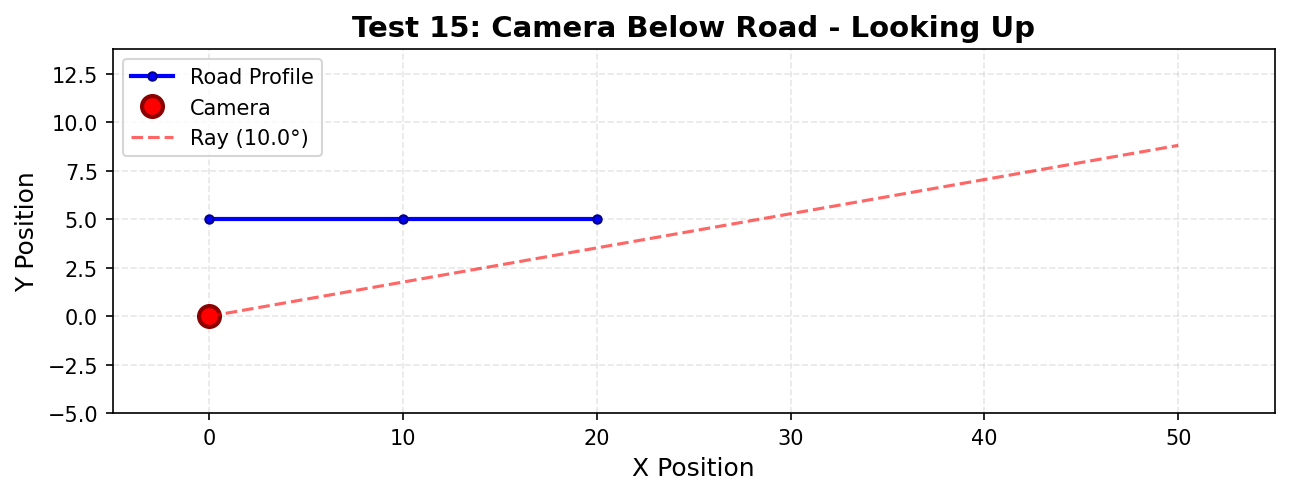

Test 15: Camera Below Road - Looking Up

Input: camera_y = 0 (below road), angle = 10° (upward)
Expected: Intersection at (x≈28.3, y=5)
What it tests: Camera below surface looking up to hit road

Category 4: Outcome-Based Tests

Dimension: What does the function return?

Why this matters:

• Different outcomes exercise different code paths
• "Where" intersection occurs affects return value computation
• No intersection is a valid outcome to test

Tests 16-19 cover this dimension...

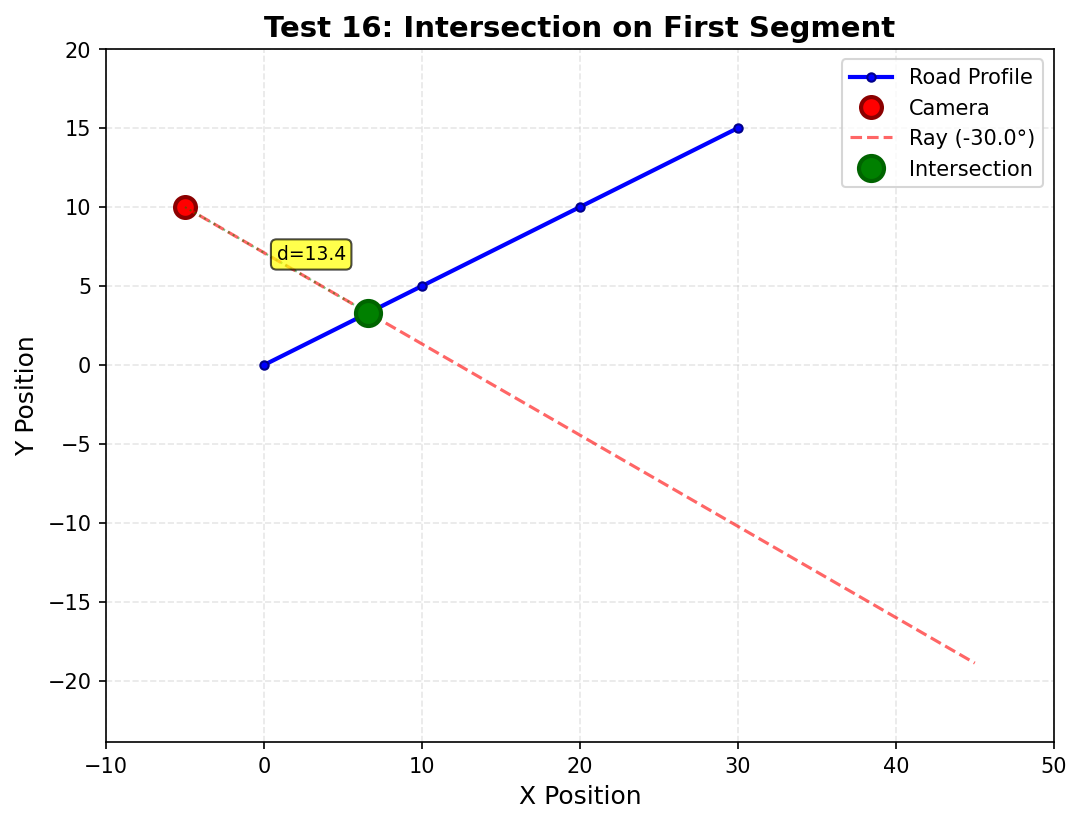

Test 16: Intersection on First Segment

Input: camera_x = -5 (before road), steep angle = -30°
Expected: Intersection at (x≈8.2, y≈3.6) - hits first segment
What it tests: Ray hits the earliest possible segment

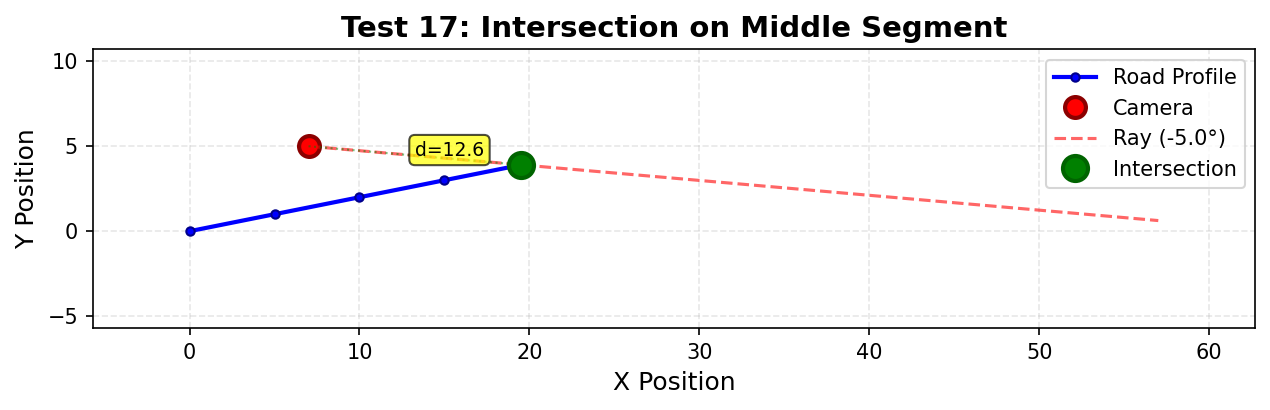

Test 17: Intersection on Middle Segment

Input: camera at x=7, gentle angle = -5°
Expected: Intersection at (x≈13, y≈2.5) - middle of road
What it tests: Ray passes first segments, hits middle one

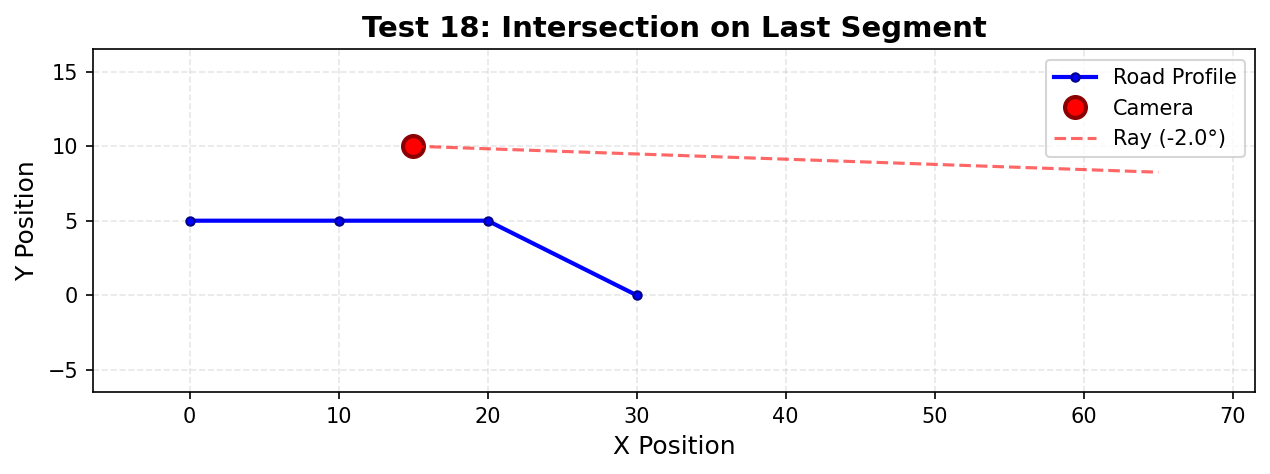

Test 18: Intersection on Last Segment

Input: camera at x=15, shallow angle = -2°
Expected: Intersection at (x≈27.5, y≈0.55) - last segment
What it tests: Ray reaches far end of road

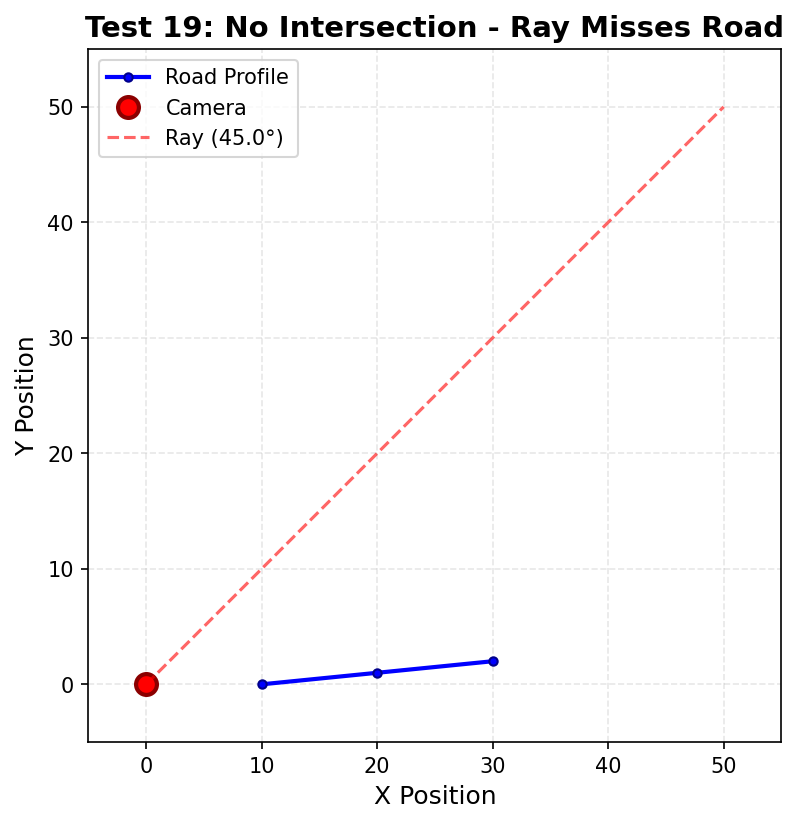

Test 19: No Intersection - Ray Misses Road

Input: camera at origin, upward angle = 45°, road far ahead
Expected: None (ray shoots upward, never hits road)
What it tests: Ray trajectory doesn't intersect road geometry

Category 5: Road Shape Variations

Dimension: Geometric properties of the road

Why this matters:

• Flat roads simplify geometry (all y-values same)
• Sloped roads test consistent gradient
• Curved roads test varying slopes

Tests 20-22 cover this dimension...

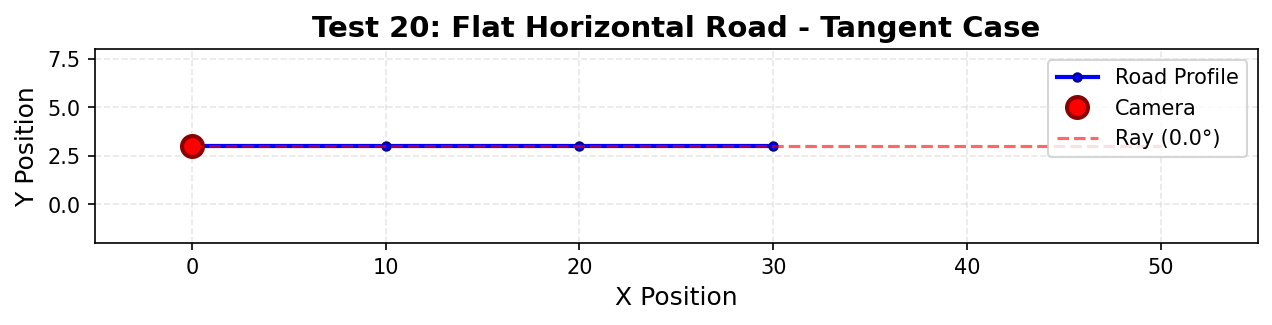

Test 20: Flat Horizontal Road - Tangent Case

Input: All y-values = 3.0 (perfectly flat), angle = 0°
Expected: Intersection at (x=0, y=3) - ray along surface
What it tests: Degenerate case, horizontal ray on horizontal road

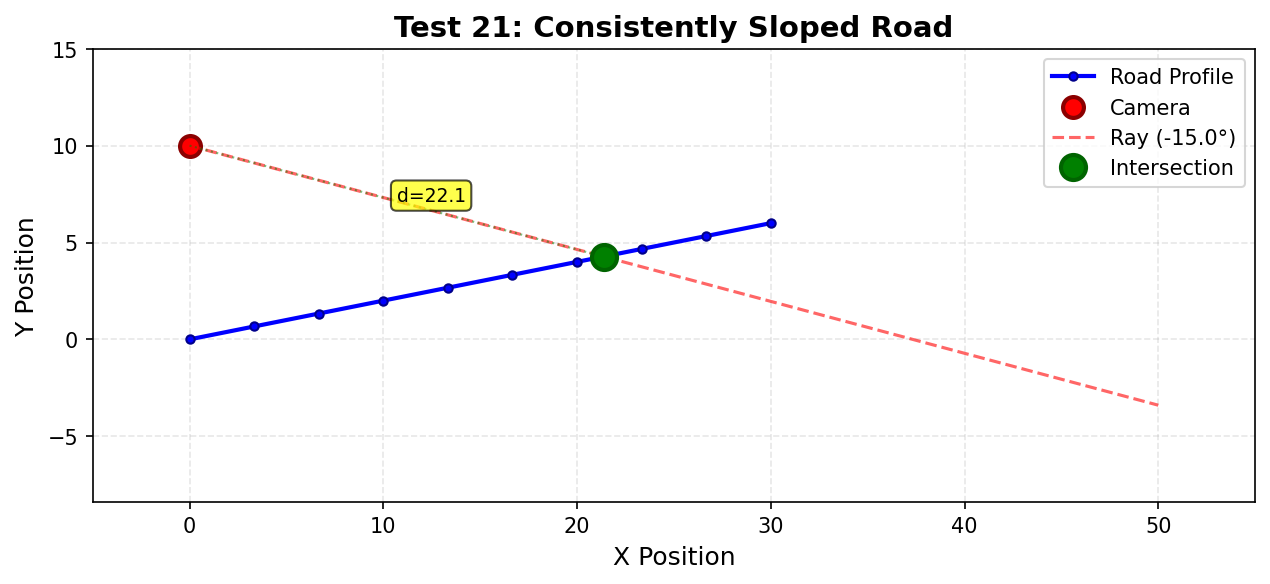

Test 21: Consistently Sloped Road

Input: y = 0.2x (linear slope), angle = -15°
Expected: Intersection at (x≈22.7, y≈4.5)
What it tests: Uniform gradient, all segments have same slope

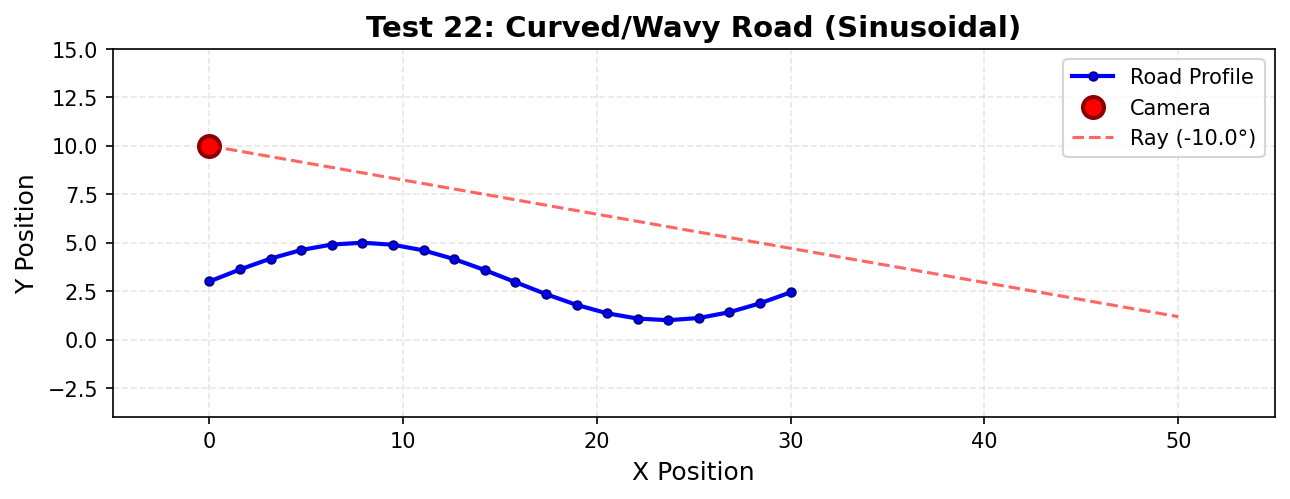

Test 22: Curved/Wavy Road (Sinusoidal)

Input: y = 2·sin(x/5) + 3 (wavy road)
Expected: Intersection at (x≈27.8, y≈4.9)
What it tests: Non-linear road, varying slopes, realistic complexity

Key Insight: Same Output, Different Dimensions

Notice that Test 3 and Test 13 both return None (no intersection).

But they test completely different things!

Why Both Tests Are Necessary

Test 3 validates: "Can the function handle a minimal road structure (just 1 segment)?"

• Tests structural robustness
• Ensures algorithm works with minimal valid input

Test 13 validates: "Can the function handle a camera positioned far above the road?"

• Tests positional logic
• Ensures vertical displacement doesn't break intersection math

Critical principle:

You need to cover different input dimensions even if they produce the same output!

The Complete Test Suite Structure

class TestFindIntersection:
    # Structural (4 tests)
    def test_empty_arrays(self): ...
    def test_single_point(self): ...
    def test_two_point_road(self): ...
    def test_many_point_road(self): ...

    # Angle (5 tests)
    def test_downward_angle(self): ...
    def test_horizontal_angle(self): ...
    def test_upward_angle(self): ...
    def test_vertical_downward(self): ...
    def test_vertical_upward(self): ...

The Complete Test Suite Structure (continued)

    # Position (6 tests)
    def test_camera_before_road(self): ...
    def test_camera_on_road(self): ...
    def test_camera_after_road(self): ...
    def test_camera_above_road(self): ...
    def test_camera_at_road_level(self): ...
    def test_camera_below_road(self): ...

    # Outcome (4 tests)
    def test_first_segment(self): ...
    def test_middle_segment(self): ...
    def test_last_segment(self): ...
    def test_no_intersection(self): ...

The Complete Test Suite Structure (continued)

    # Shape (3 tests)
    def test_flat_road(self): ...
    def test_sloped_road(self): ...
    def test_curved_road(self): ...

# Total: 22 strategic tests covering 5 dimensions
# Instead of: 1800 possible combinations!

What You've Learned

What You've Learned (continued)

4. Same output ≠ same test

• Tests can return identical values but cover different dimensions
• Test 3 (structural) vs Test 13 (positional) both return None
• Complete coverage requires testing all dimensions

5. Domain knowledge is irreplaceable

• Human understanding of geometry enables smart reduction
• LLMs can't visualize or prioritize like domain experts
• You provide insight, LLMs provide implementation help

Summary: The Testing Process

For complex multi-dimensional functions:

1. Identify dimensions - What are the independent input factors?
2. Partition each dimension - What are the equivalence classes?
3. Calculate combinations - How many total tests theoretically?
4. Apply domain knowledge - Which combinations are impossible/redundant?
5. Choose representatives - Pick specific values for each class
6. Visualize if possible - Diagrams help verify correctness
7. Implement strategically - Focus on distinct behaviors

Result: Manageable test suite with strong coverage!
